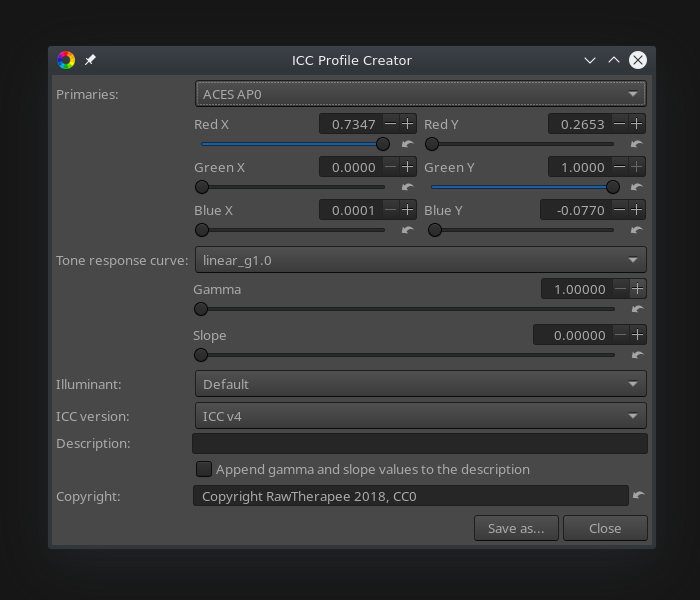

The ICC Profile Creator


Rt55 icc profile creator.png

The ICC Profile Creator allows you to generate your own ICC profiles. You can use standard presets as well as custom values.

RawTherapee can generate output, screen or custom working profiles using the XYZ matrix generated for Custom profiles

You cannot adjust all the parameters of an ICC profile with this tool, e.g. the A2B or B2A tags, but you can adjust those that are important for a photographer i.e. the primary colors, the tone reproduction curve, and the white point (illuminant).

You can generate profiles in accordance with ICC versions 2 and 4, and in both cases you can use custom primaries and modify the illuminant as well as the tone reproduction curve (TRC).

The code and the basic principles are similar to those used for Abstract profiles


Access this module via the Gamut-plus.png ICC Profile Creator button located either in the bottom-left or top-right of the RawTherapee window.

To make the profiles you generate available for use in RawTherapee, save them to the "directory containing color profiles" as specified in Preferences > Color Management.

Primary Colors

The three primary colors - Red, Green, Blue - are additive and form the basis of all other colors. In the ICC profile generator, you specify the location of the primary colors on the 1931 CIE xy chromaticity diagram using the xy coordinates.

CIE xy diagram

Operation of the algorithm

Tone Reproduction Curve

The TRC is essentially a curve that transforms the initial or input values of the image into values that will be recorded in the output image. We can modify 2 parameters:

  • Gamma,
  • Slope.

You can choose predefined values such as 'standard g 2.2', 'sRGB g=2.4 s=12.92' or build a custom TRC. In the case of a custom TRC, the curve will consist of a linear part and a parabolic part with a seamless connection between the two.

You can see other uses of the TRC in Abstract profiles > TRC_-_Tone_Response_Curve.


The illuminant is used to derive the white-point reference for color profiles. The white point, which is identified by its temperature and a symbol (D50, StdA 2856K, Fluorescent F11, etc.) is represented using either XYZ or xyY data calculated as follows: X,Z (Y= 1) = Sum of the matrix product from 350nm to 830nm [Observer 2° x or z][Illuminant I]/ Sum of the matrix product from 350nm to 830nm [Observer 2° y][Illuminant I].

Although the colors are usually encoded using one of the standard D50, D60 or D65 illuminants, you can specify a different illuminant in the drop-down list. In this case, the profile generator will add the necessary chromaticity adaptation to convert the colors to the selected illuminant.

For further information on illuminants and Abstract Profiles see: Illuminant - Abstract profile.
